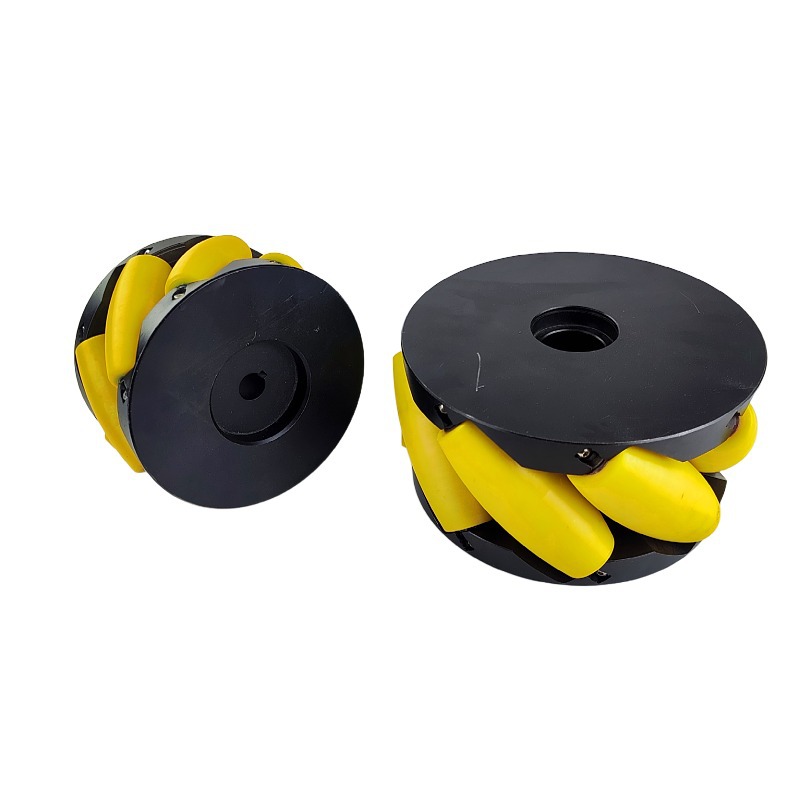

8" Heavy-Duty Mecanum Wheel — 203mm
from $219.90 / pc · qty pricing on request
Industrial-grade mecanum wheel rated for heavy AGV platforms. Polyurethane over aluminium, 500 kg static load rating, precision bearings — built for production vehicles, not prototypes.
| Diameter | 203 mm (8") |
|---|---|
| Material | Polyurethane + aluminium alloy |
| Max Load | 500 kg (static) |
| Wheel Width | 102 mm |
| Installed Height | 203 mm |
| Bearing | Custom precision bearing |
| Self Weight | approx. 8 kg |
| MOQ | 2 pcs |
| Lead Time | 10-20 days (heavy-duty line) |
500kgLoad Rating
203mm8" Diameter
AluHeavy-Duty Core
Quick answers
What is the load capacity?
This 8" line is rated up to 500 kg static per wheel — confirm your dynamic load with us for sizing.
What is the MOQ?
MOQ is 2 pcs for testing. Production orders for AGV fleets usually start at 10-50 wheels.
Can you customise the hub/bore?
Yes — keyed, splined or custom bores per your drive unit. OEM and private label available.
What is the lead time?
Typically 10-20 days for the heavy-duty line, depending on configuration and quantity.
