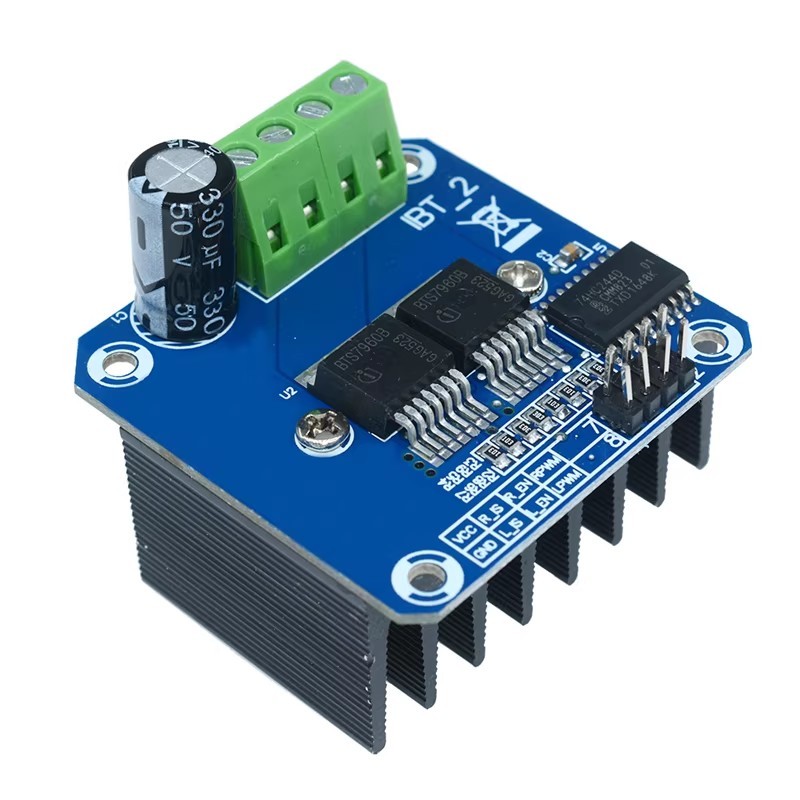

BTS7960 High-Power Motor Driver (IBT-2)
from $2.00 / 5-pc pack · qty pricing on request
The IBT-2 BTS7960 half-bridge driver module with a large aluminium heatsink — up to 43A peak current for bigger DC motors, AGV drivetrains and high-torque applications that L298N boards cannot handle.
| Input | 5.5 - 27 V DC |
|---|---|
| Current | Up to 43 A peak (2× BTS7960) |
| Drive | Dual half-bridge, PWM up to 25 kHz |
| Protection | Current sense + thermal pad |
| Heatsink | Large aluminium, included |
| Terminal | Screw terminals + pin headers |
| MOQ | 5 pcs |
FAQ
What is the MOQ?
5 pcs — one per drive wheel for a 4WD platform.
Can it replace an L298N?
Yes, for higher current — same PWM control logic, much more headroom.
Does it need a heatsink?
The aluminium heatsink is included and should stay mounted above ~10A continuous.
