Robotics Components

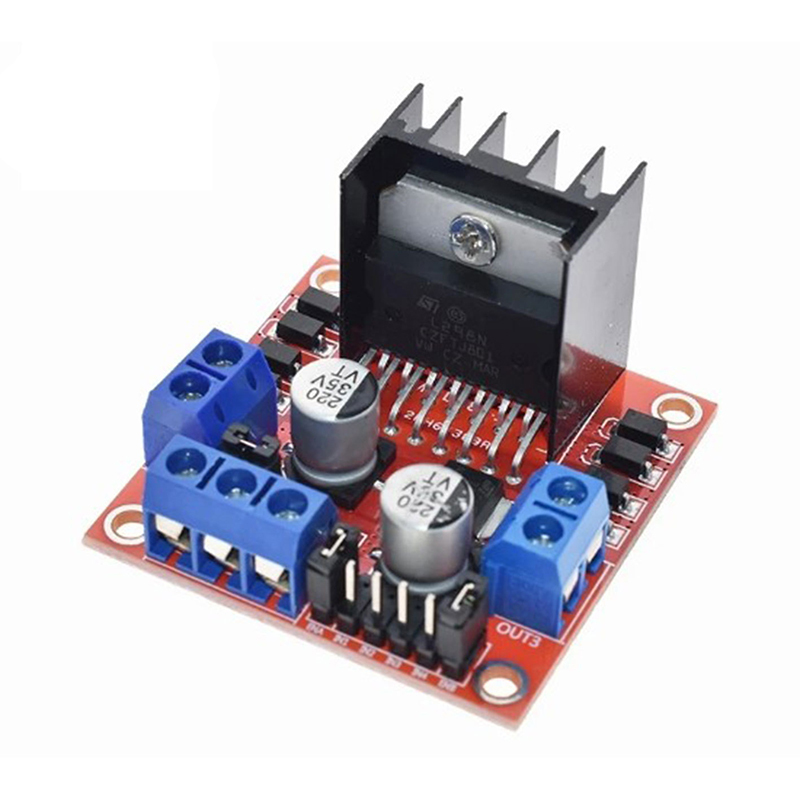

L298N Dual H-Bridge Motor Driver Module
from $1.20 / 5-pc pack · qty pricing on request
The classic L298N dual H-bridge module: 5-35V input, 2A per channel, PWM speed control and an onboard 5V regulator. The default driver for DC motors, steppers and smart-car platforms — stack them for multi-motor robots.
| Input | 5 - 35 V DC |
|---|---|
| Current | 2 A per channel |
| Channels | 2 (dual H-bridge) |
| Onboard | 5 V regulator output |
| Control | PWM speed + direction |
| Heatsink | Included |
| MOQ | 5 pcs |
FAQ
What is the MOQ?
5 pcs — enough for a 4WD platform plus spares.
Can it drive steppers?
Yes — the L298N drives 2-phase steppers as well as DC motors.
Do I need a separate 5V supply?
No — the onboard regulator supplies logic power from the motor input.
